Introduction

Many of the samplers shipped with microgl have many efficient Gradients samplers, we show them here.

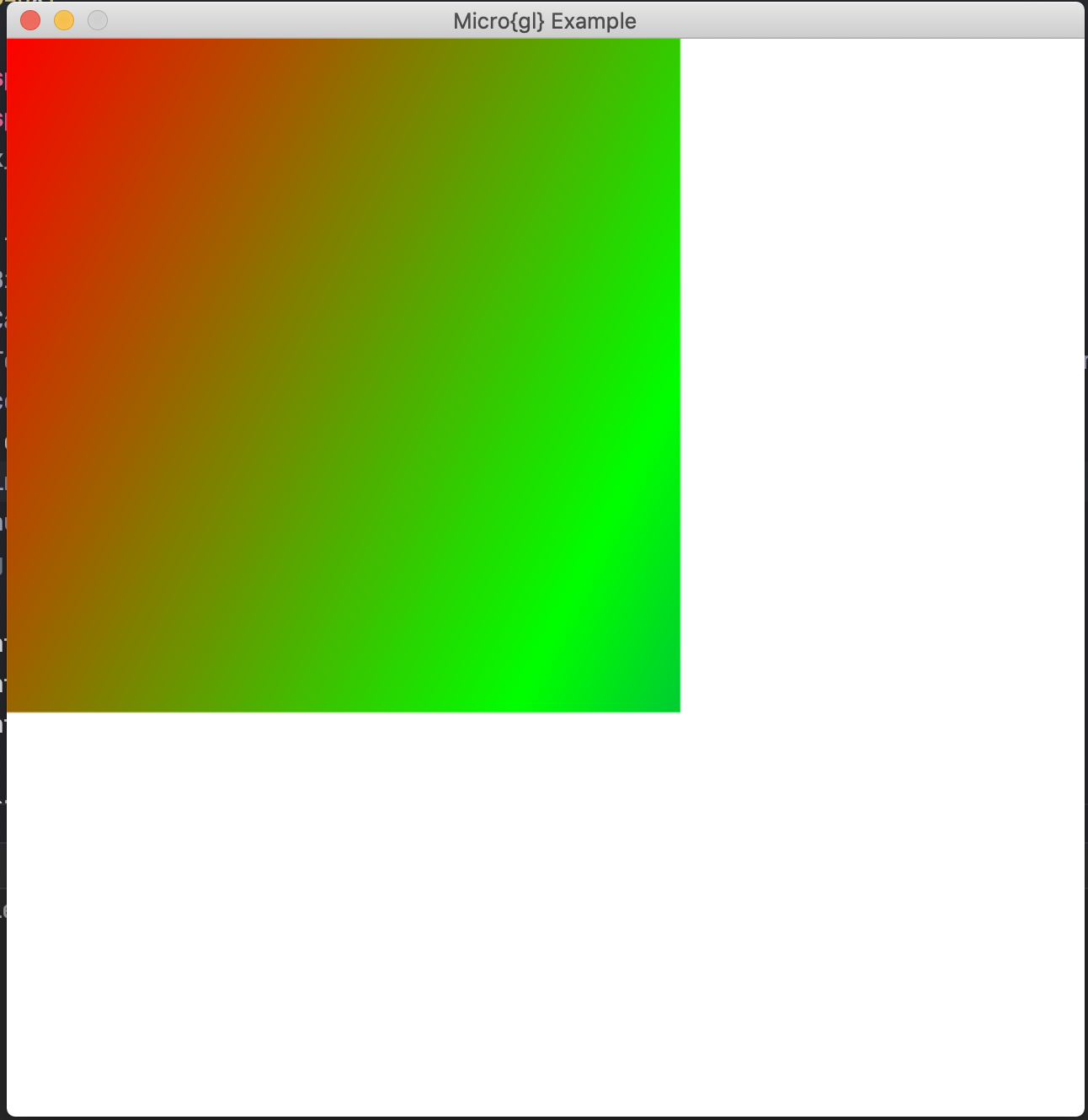

Line Gradient Sampler

• defined at <microgl/samplers/line_linear_gradient.h>
• example at /examples/example_sampler_gradient_line.cpp

the line gradient defines color stops on a line on which it samples. The line definition is relative to unit rectangle.

Usage Example

#include <microgl/canvas.h>
#include <microgl/pixel_coders/RGB888_PACKED_32.h>
#include <microgl/samplers/line_linear_gradient.h>

using Canvas24= canvas<bitmap<coder::RGB888_PACKED_32>>;
using number = float;
// using number = Q<12>;

Canvas24 canvas(640, 640);
line_linear_gradient<number, 3, Canvas24::rgba> gradient{{0, 1}, {2, 0}};

gradient.addStop(0.0f, {255, 0,   0});
gradient.addStop(0.5f, {0,   255, 0});
gradient.addStop(1.f, {0,    0,   255});

canvas.clear({255, 255, 255, 255});
canvas.drawRect<blendmode::Normal, porterduff::None<>, false, number>(
                        gradient,
                        0, 0, 400, 400);

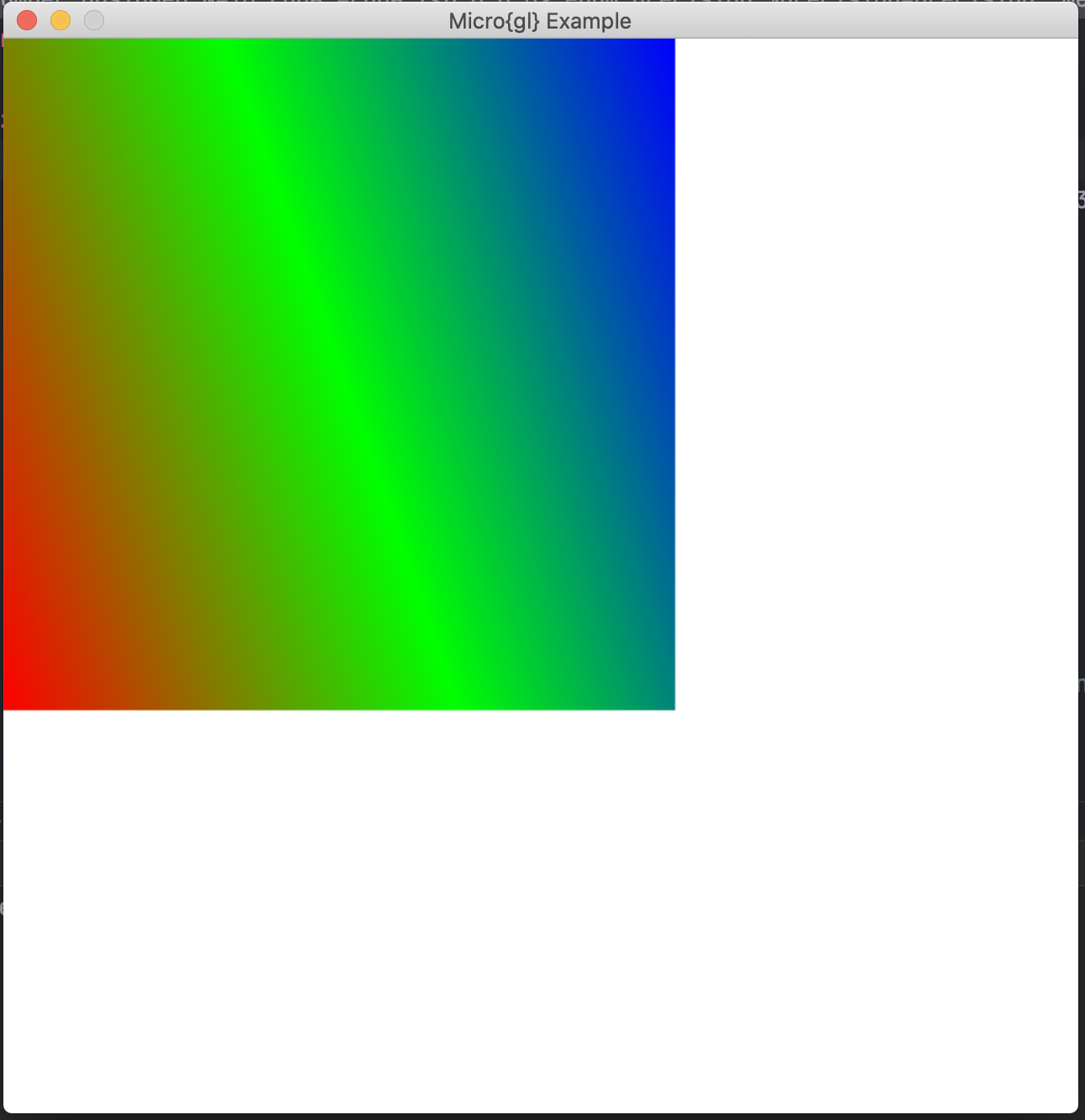

Angular Linear Gradient Sampler

• defined at <microgl/samplers/angular_linear_gradient.h>
• example at /examples/example_sampler_gradient_angular_linear.cpp

This gradient is inferred by a given angle to create a line at the unit rectangle. the user can then define the color stops.

Usage Example

#include "src/example.h"
#include <microgl/canvas.h>
#include <microgl/pixel_coders/RGB888_PACKED_32.h>
#include <microgl/samplers/angular_linear_gradient.h>

using namespace microgl::sampling;

using Canvas24= canvas<bitmap<coder::RGB888_PACKED_32>>;
using number = float;
// using number = Q<12>;

Canvas24 canvas(640, 640);
angular_linear_gradient<number, 3, Canvas24::rgba> gradient{45};

auto render = [&]() -> void {
    static float number t = 0;
    t+=number(0.01);

    gradient.setAngle(t);
    gradient.addStop(0.0f, {255, 0,   0});
    gradient.addStop(0.5f, {0,   255, 0});
    gradient.addStop(1.0f, {0,   0,   255});

    canvas.clear({255, 255, 255, 255});
    canvas.drawRect<blendmode::Normal, porterduff::None<>, false, number>(
        gradient,
        0, 0, 400, 400);
};

example_run(&canvas, render);

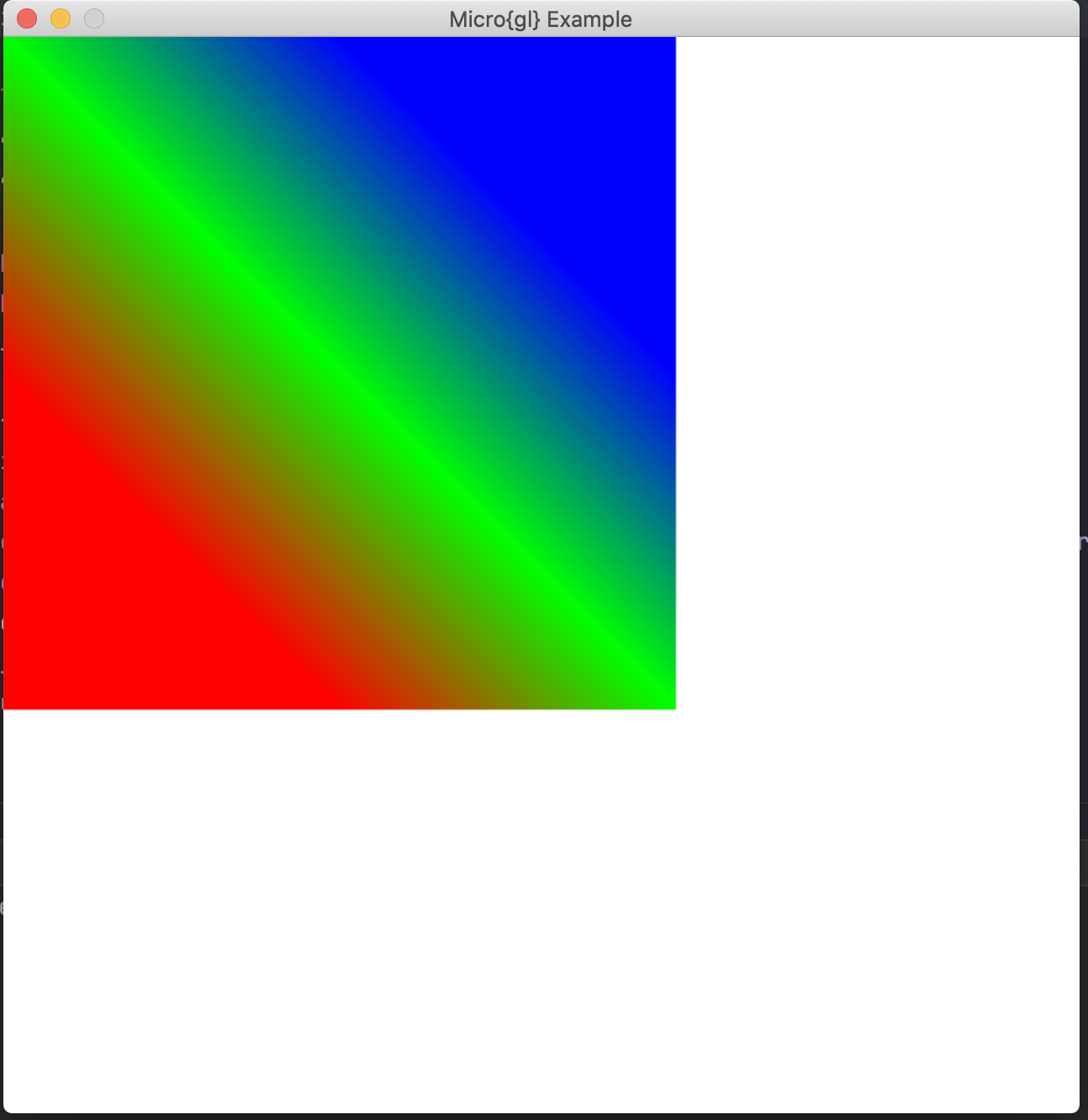

Axial Linear Gradient Sampler

• defined at <microgl/samplers/axial_linear_gradient.h>
• example at /examples/example_sampler_gradient_axial.cpp

This gradient is a faster variant if you need any number of stops but with angle, that is a modulu of 45 (0, 45, 90, 135, 180, 225, 270, 315, 360)

Usage Example

#include "src/example.h"
#include <microgl/canvas.h>
#include <microgl/pixel_coders/RGB888_PACKED_32.h>
#include <microgl/samplers/axial_linear_gradient.h>

using namespace microgl::sampling;

using Canvas24= canvas<bitmap<coder::RGB888_PACKED_32>>;
using number = float;
// using number = Q<12>;

Canvas24 canvas(640, 640);
axial_linear_gradient<135, 3, Canvas24::rgba> gradient;

gradient.addStop(0.0f, {255, 0,   0});
gradient.addStop(0.5f, {0,   255, 0});
gradient.addStop(1.f,  {0,   0,   255});

auto render = [&]() -> void {
    canvas.clear({255,255,255,255});
    canvas.drawRect<blendmode::Normal, porterduff::None<>, false, number>(
            gradient,
            0, 0, 400, 400);
};

example_run(&canvas, render);

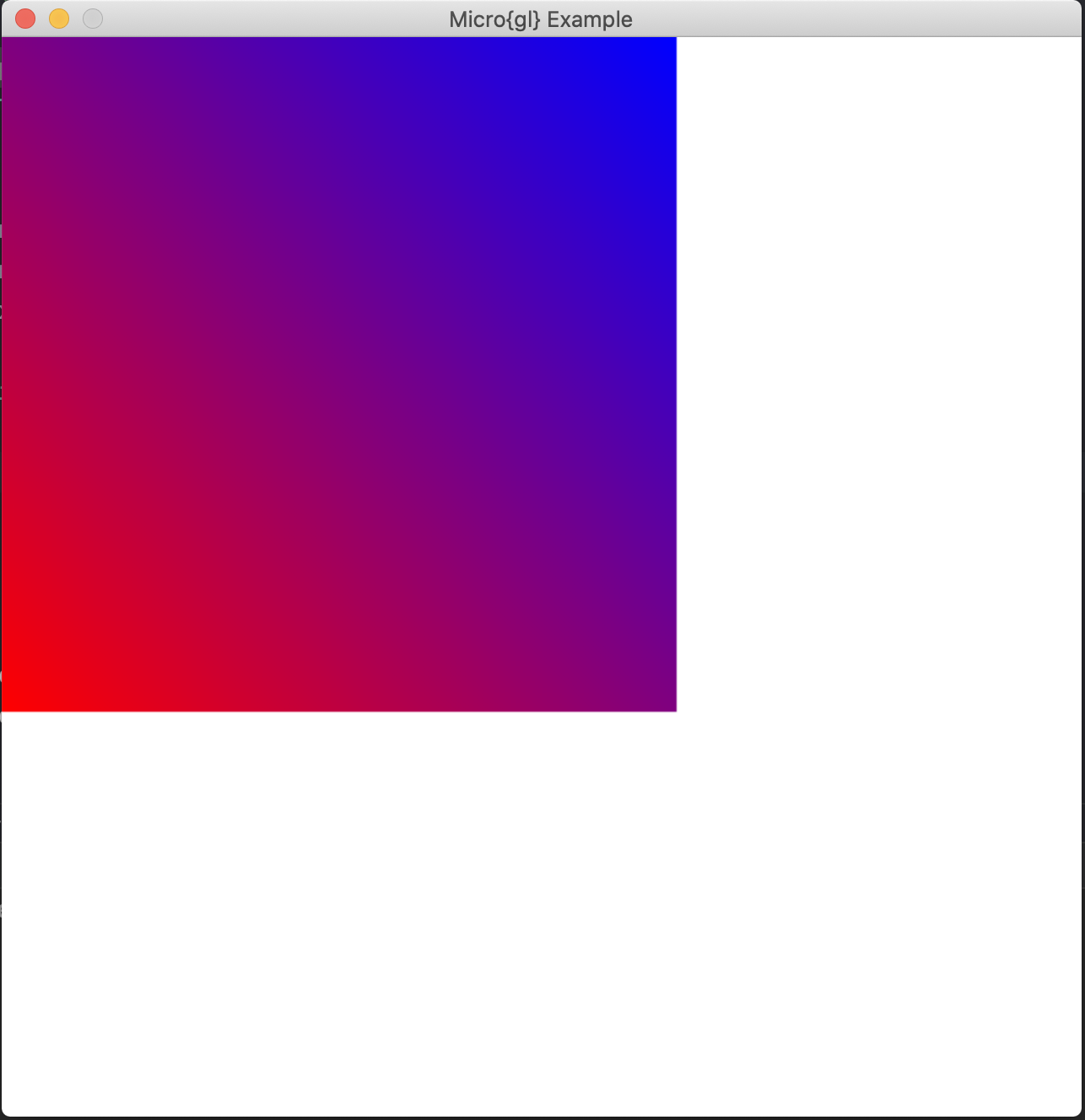

2 Colors Gradient Sampler

• defined at <microgl/samplers/linear_gradient_2_colors.h>
• example at /examples/example_sampler_gradient_2_colors_fast.cpp

This gradient is a very fast variant if you need only 2 colors stops but with angle, that is a modulu of 45 (0, 45, 90, 135, 180, 225, 270, 315, 360)

Usage Example

#include "src/example.h"
#include <microgl/canvas.h>
#include <microgl/pixel_coders/RGB888_PACKED_32.h>
#include <microgl/samplers/linear_gradient_2_colors.h>

using namespace microgl;
using namespace microgl::sampling;

using Canvas24= canvas<bitmap<coder::RGB888_PACKED_32>>;
using number = float;
//    using number = Q<12>;

Canvas24 canvas(640, 640);
linear_gradient_2_colors<45> gradient{{255,0,0}, {0,0,255}};

auto render = [&]() -> void {
    canvas.clear({255,255,255,255});
    canvas.drawRect<blendmode::Normal, porterduff::None<>, false, number>(
            gradient,
            0, 0, 400, 400);
};

example_run(&canvas, render);

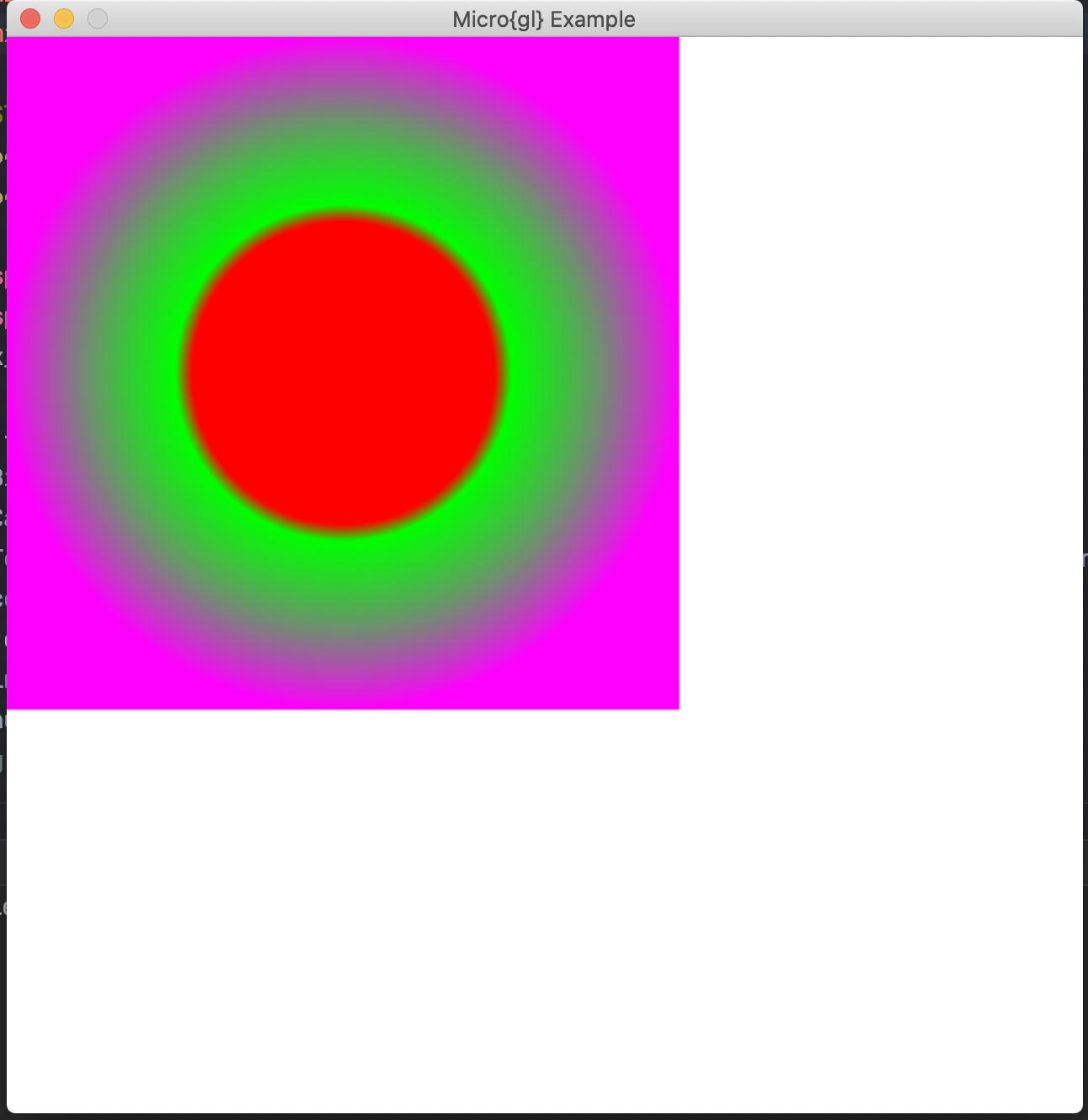

Fast Radial Gradient Sampler

• defined at <microgl/samplers/fast_radial_gradient.h>
• example at /examples/example_sampler_gradient_radial.cpp

This gradient is a fast radial gradient.

#include "src/example.h"
#include <microgl/canvas.h>
#include <microgl/pixel_coders/RGB888_PACKED_32.h>
#include <microgl/samplers/fast_radial_gradient.h>

using namespace microgl;
using namespace microgl::sampling;

using Canvas24= canvas<bitmap<coder::RGB888_PACKED_32>>;
using number = float;
// using number = Q<12>;

Canvas24 canvas(640, 640);
fast_radial_gradient<number, 4, rgba_t<8,8,8,0>, precision::high> gradient{0.5, 0.5, 0.5};

gradient.addStop(0.0f,  {255, 0,   0});
gradient.addStop(0.45f, {255, 0,   0});
gradient.addStop(0.50f, {0,   255, 0});
gradient.addStop(1.f,   {255, 0,   255});

auto render = [&]() -> void {
    canvas.clear({255,255,255,255});
    canvas.drawRect<blendmode::Normal, porterduff::None<>, false, number>(
            gradient,
            0, 0, 400, 400);
};

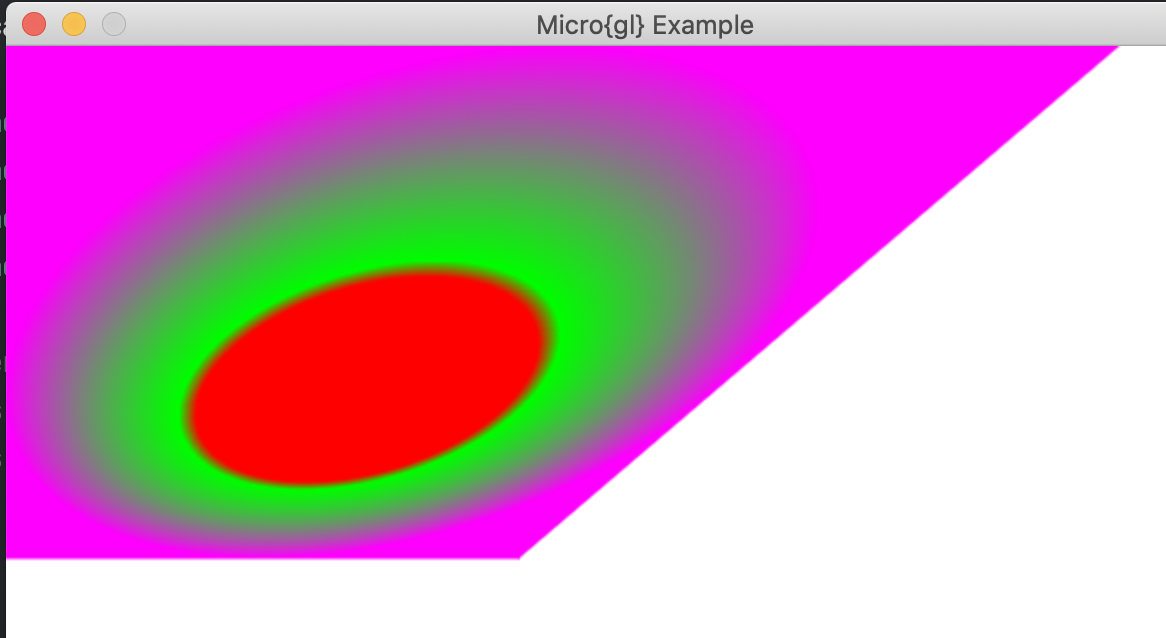

auto render2 = [&]() -> void {
    canvas.clear({255,255,255,255});
    canvas.drawQuadrilateral<blendmode::Normal, porterduff::FastSourceOverOnOpaque, true, number>(
            gradient,
            0,       0,     0.0f,   1.0f,
            556,     0,     1.0f,   1.0f,
            256,     256,   1.0f,   0.0f,
            0,       256,   0.0f,   0.0f,
            255);
};

auto & render3 = render2;

example_run(&canvas, render3);
